MAX2016 - LF-to-2.5GHz Dual Logarithmic Detector/Controller

Datasheet Summary

Description

The MAX2016 dual logarithmic detector/controller is a fully integrated system designed for measuring and comparing power, gain/loss, and voltage standing-wave ratio (VSWR) of two incoming RF signals.

Features

  • Complete Gain and VSWR Detector/Controller.
  • Dual-Channel RF Power Detector/Controller.
  • Low-Frequency to 2.5GHz Frequency Range.
  • Exceptional Accuracy Over Temperature.
  • High 80dB Dynamic Range.
  • 2.7V to 5.25V Supply Voltage Range.
  • Internal 2V Reference.
  • Scaling Stable Over Supply and Temperature Variations.
  • Controller Mode with Error Output.
  • Available in 5mm x 5mm 28-Pin Thin QFN Package.
  • See Power-S.

📥 Download Datasheet

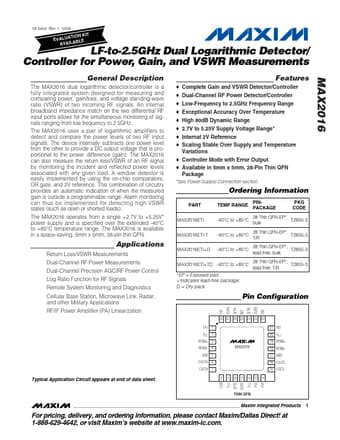

Datasheet preview – MAX2016

Datasheet Details

Part number MAX2016
Manufacturer Maxim Integrated Products
File Size 930.58 KB
Description LF-to-2.5GHz Dual Logarithmic Detector/Controller
Datasheet download datasheet MAX2016 Datasheet
