MAX201

+5V-Powered / Multichannel RS-232 Drivers/Receivers

Maxim

MAX201 Features

* Saves Board Space

* Integrated Charge Pump Circuitry Eliminates the Need for a Bipolar ±12V Supply Enables Single Supply Operation From Either +5V or 9V to +12V

* Integrated 0.1μF Capacitors (MAX203, MAX205)

* 24 pin SSOP Package Saves Up to 40% Versus SO

MAX201 General Description

MAX200-MAX209, MAX211, and MAX213 are a family of RS-232 and V.28 transceivers with integrated charge pump circuitry for single +5V supply operation. The drivers maintain the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120kbps when loaded in accordance with the EIA/TIA-232E spec.

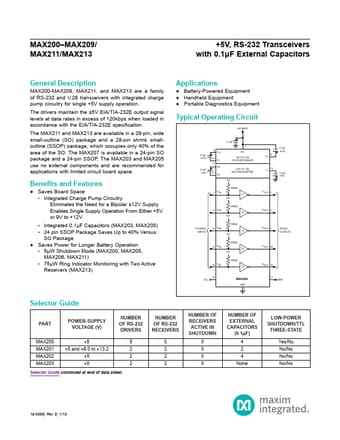

MAX201 Datasheet (560.45 KB)

MAX201 Datasheet Preview — Preview of MAX201 PDF

Datasheet Details

Part number:

MAX201

Manufacturer:

Maxim

File Size:

560.45 KB

Description:

+5v-powered / multichannel rs-232 drivers/receivers.
