MAX2010 Datasheet, Predistorter, Maxim Integrated Products

MAX2010 Features

  • Predistorter Up to 12dB ACPR Improvement
  • Independent Gain and Phase Expansion Controls Gain Expansion Up to 6dB Phase Expansion Up to 21° 500MHz to 1100MHz Frequency Range Exceptional Gain

PDF File Details

Part number:

MAX2010

Manufacturer:

Maxim Integrated ↗ Products

File Size:

562.51kb

Download:

📄 Datasheet

Description:

500mhz to 1100mhz adjustable rf predistorter. The MAX2010 adjustable RF predistorter is designed to improve power amplifier (PA) adjacent-channel power rejection (ACPR) by introdu

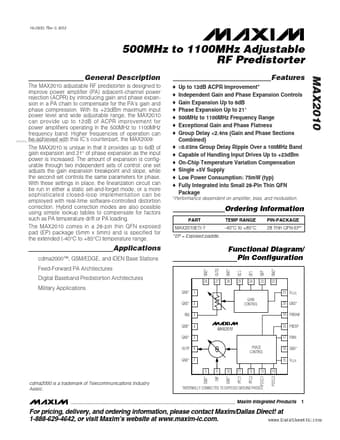

Datasheet Preview: MAX2010 📥 Download PDF (562.51kb)
Page 2 of MAX2010 Page 3 of MAX2010

MAX2010 Application

  • Applications cdma2000™, GSM/EDGE, and iDEN Base Stations OUTG GND
  • Functional Diagram/ Pin Configuration GND
  • GND
  • 22 21 VC
