MAX232I

Dual EIA-232 Drivers/Receivers

MAX232I Features

* Meets or exceeds TIA/EIA-232-F and ITU recommendation V.28

* Operates from a single 5V power supply with 1µF charge-pump capacitors

* Operates up to 120kbit/s

* Two drivers and two receivers

* ±30V Input levels

* Low supply current: 8mA typical

MAX232I General Description

The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/ EIA-232-F voltage levels from a single 5V supply. Each receiver converts TIA/EIA-232-F inputs to 5V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5.

MAX232I Datasheet (1.72 MB)

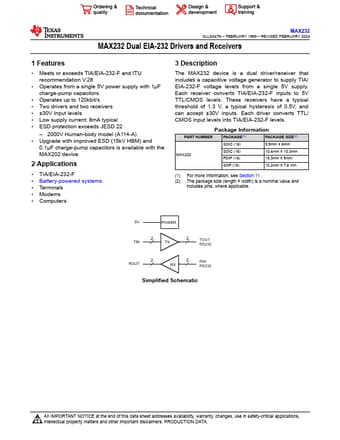

Preview of MAX232I PDF

Datasheet Details

Part number:

MAX232I

Manufacturer:

Texas Instruments ↗

File Size:

1.72 MB

Description:

Dual eia-232 drivers/receivers.
