MAX2322 - SiGe Dual-Band LNA/Mixer

Product Overview

Maxim

Datasheet Details

Part number	MAX2322
Manufacturer	Maxim
File Size	408.90 KB
Description	SiGe Dual-Band LNA/Mixer
Datasheet	MAX2322 Datasheet

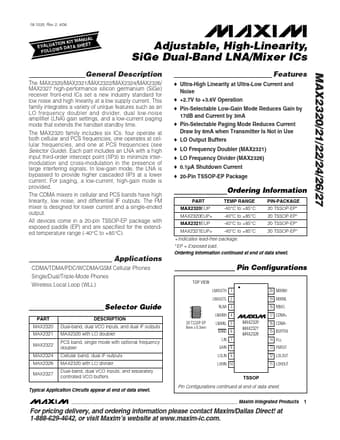

Additional preview pages of the MAX2322 datasheet.

Product details

Description

The MAX2320/MAX2321/MAX2322/MAX2324/MAX2326/ MAX2327 high-performance silicon germanium (SiGe) receiver front-end ICs set a new industry standard for low noise and high linearity at a low supply current.

Features

o Ultra-High Linearity at Ultra-Low Current and Noise o +2.7V to +3.6V Operation o Pin-Selectable Low-Gain Mode Reduces Gain by 17dB and Current by 3mA o Pin-Selectable Paging Mode Reduces Current Draw by 6mA when Transmitter Is Not in Use o LO Output Buffers o LO Frequency Doubler (MAX2321) o LO Frequency Divider (MAX2326) o 0.1µA Shutdown Current o 20-Pin TSSOP-EP Package General.
