ULN2003AN Datasheet, Driver, HTC

ULN2003AN Features

• Driver
• 7 Darlington Arrays per Package
• 500 mA Rated Collector Current (Single Output)
• Output voltage 50V
• Output Clamp Diodes
• Input Compatible

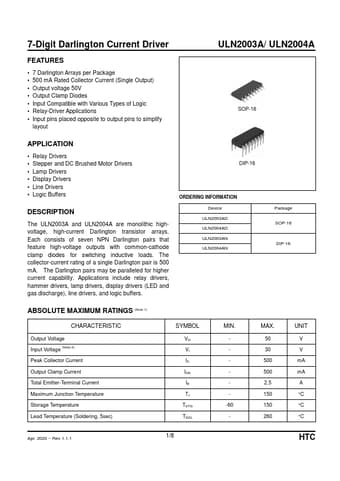

PDF File Details

Part number:

ULN2003AN

Manufacturer:

HTC

File Size:

409.46kb

Download:

📄 Datasheet

Description:

7-digit darlington current driver. The ULN2003A and ULN2004A are monolithic highvoltage, high-current Darlington transistor arrays. Each consists of seven NPN Darlingto

ULN2003AN Application

• Applications
• Input pins placed opposite to output pins to simplify layout ULN2003A/ ULN2004A SOP-16 APPLICATION
• Relay Drivers
