ULN2004AN, ULN2003AD - 7-Digit Darlington Current Driver

ULN2004AN Description

7-Digit Darlington Current Driver .
The ULN2003A and ULN2004A are monolithic highvoltage, high-current Darlington transistor arrays.

ULN2004AN Features

* 7 Darlington Arrays per Package
* 500 mA Rated Collector Current (Single Output)
* Output voltage 50V
* Output Clamp Diodes
* Input Compatible with Various Types of Logic

ULN2004AN Applications

* Input pins placed opposite to output pins to simplify layout ULN2003A/ ULN2004A SOP-16 APPLICATION
* Relay Drivers
* Stepper and DC Brushed Motor Drivers
* Lamp Drivers
* Display Drivers
* Line Drivers

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ULN2004AN, ULN2003AD. Please refer to the document for exact specifications by model.

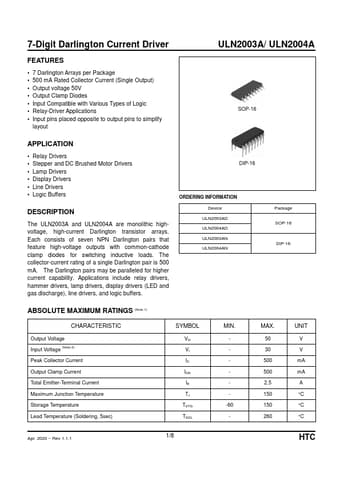

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ULN2004AN, ULN2003AD
Manufacturer
HTC
File Size
409.46 KB
Datasheet
ULN2003AD-HTC.pdf
Description
7-Digit Darlington Current Driver
Note
This datasheet PDF includes multiple part numbers: ULN2004AN, ULN2003AD.
Please refer to the document for exact specifications by model.
