| Part number | ULN2004AIN |
|---|---|
| Manufacturer | Texas Instruments |
| File Size | 695.53 KB |
| Description | HIGH-VOLTAGE HIGH-CURRENT DARLINGTON TRANSISTOR ARRAY |
| Datasheet |

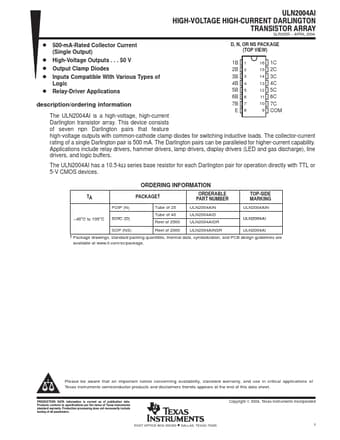

 ULN2004AIN Datasheet
|
| Note |
This datasheet PDF includes multiple part numbers: ULN2004AIN, ULN2004AI. Please refer to the document for exact specifications by model. |
|
|
ordering information 7B 7 10 7C The ULN2004AI is a high-voltage, high-current E8 9 COM Darlington transistor array.This device consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.The collector-current rating of a single Darlington pair is 500 mA.The Darlington pairs can be paralleled for higher-current capability.Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED
