HT358V Datasheet, Amplifiers, HTCSEMI

HT358V Features

  • Amplifiers Operating range from VCC = 2.7 to 6 V Rail-to-rail input and output Extended Vicm (VDD - 0.2 V to VCC + 0.2 V) Low supply current (145 µA) Gain bandwidth product (1 MHz) ESD tolerance (

PDF File Details

Part number:

HT358V

Manufacturer:

HTCSEMI

File Size:

530.12kb

Download:

📄 Datasheet

Description:

Input/output rail-to-rail operational amplifiers. The HT321V/358/324 family (single, dual, and quad) answers the need for low cost, generalpurpose operational amplifiers. They operate

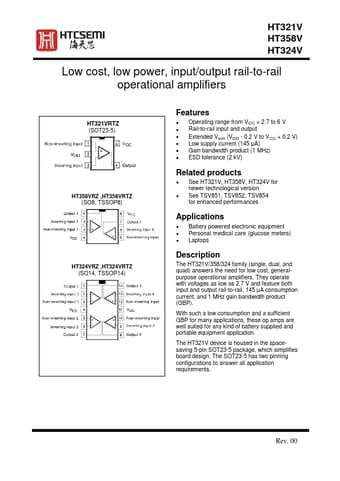

Datasheet Preview: HT358V 📥 Download PDF (530.12kb)
Page 2 of HT358V Page 3 of HT358V

HT358V Application

  • Applications Battery powered electronic equipment Personal medical care (glucose meters) Laptops Description The HT321V/358/324 family (single, dual
