HT358 Datasheet, Amplifiers, Hotchip

HT358 Features

• Amplifiers ‹ Internally frequency compensated for unity gain. ‹ Large DC voltage gain:100dB ‹ Wide power supply range: 3V~40V(or ± 1.5V~ ±16V), ‹ Input common-mode voltage range includes ground ‹

PDF File Details

Part number:

HT358

Manufacturer:

Hotchip

File Size:

464.75kb

Download:

📄 Datasheet

Description:

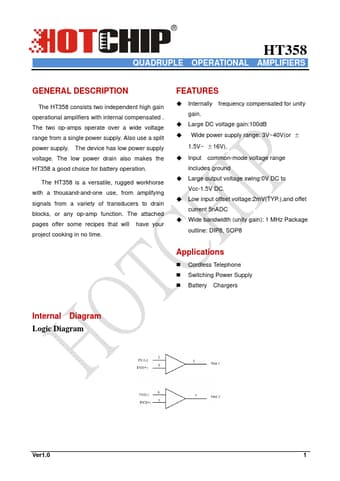

Quadruple operational amplifiers. The HT358 consists two independent high gain operational amplifiers with internal compensated . The two op-amps operate over a wide v
