25N151K - Metal Oxide Varistor

Product Overview

HUAAN

Datasheet Details

Part number	25N151K
Manufacturer	HUAAN
File Size	309.83 KB
Description	Metal Oxide Varistor
Datasheet	25N151K Datasheet

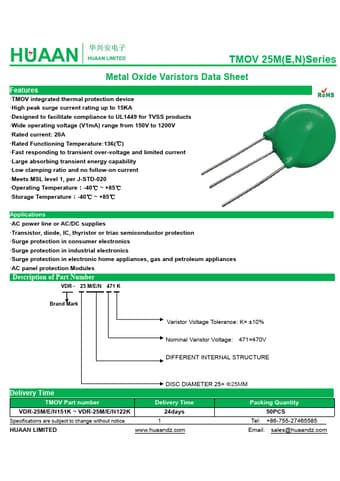

Additional preview pages of the 25N151K datasheet.

Product details

Description

of Part Number VDR - 25 M/E/N 471 K Brand Mark Varistor Voltage Tolerance: K= ±10% Nominal Varistor Voltage: 471=470V DIFFERENT INTERNAL STRUCTURE DISC DIAMETER 25= Φ25MM Delivery Time TMOV Part number Delivery Time Packing Quantity VDR-25M/E/N151K ~ VDR-25M/E/N122K 24days 50PCS Specifications are subject to change without notice 1 Tel: +86-755-27465585 HUAAN LIMITED www.huaandz.com Email: sales@huaandz.com Lead configurations and application examples TMOV 25M(E,N)Series Specifi

Features

TMOV integrated thermal protection device.
High peak surge current rating up to 15KA.
Designed to facilitate compliance to UL1449 for TVSS products.
Wide operating voltage (V1mA) range from 150V to 1200V.
Rated current: 20A.
Rated Functioning Temperature:136(℃).
Fast responding to transient over-voltage and limited current.
Large absorbing transient energy capability.
Low clamping ratio and no follow-on current.
Meets MSL level 1, per J-STD-020.
Opera.
