25N120, IXGH25N120

www.DataSheet4U.com VCES Low VCE(sat) High speed IGBT IXGH 25 N120 IXGH 25 N120A 1200 V 1200 V IC25 50 A 50 A VCE(sat) 3V 4V Symbol VCES VCGR VGES.

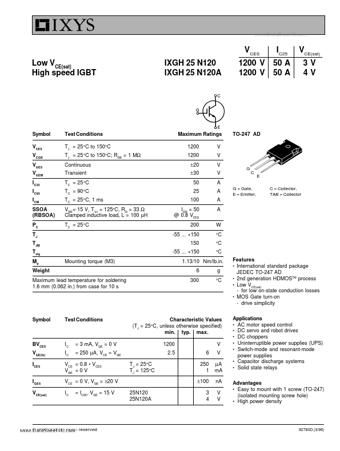

datasheet Preview Page 1 from Datasheet4u.com

25N120_IXYSCorporation.pdf

25N120 Datasheet Preview — Preview of 25N120 PDF

Datasheet Details

Part number:

25N120

Manufacturer:

IXYS Corporation

File Size:

53.99 KB

Description:

IXGH25N120

Features

* International standard package JEDEC TO-247 AD 2nd generation HDMOSTM process Low VCE(sat) - for low on-state conduction losses MOS Gate turn-on - drive simplicity l l l l Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 1200 2.5 TJ = 25°C TJ = 1

Applications

* AC motor speed control DC servo and robot drives DC choppers Uninterruptible power supplies (UPS) Switch-mode and resonant-mode power supplies Capacitor discharge systems Solid state relays l l l l l l l l l Advantages Easy to mount with 1 screw (TO-247) (isolated mounting screw hole) High power
