HY045N10P - N-Channel Enhancement Mode MOSFET

📥 Download Datasheet

Preview of HY045N10P PDF

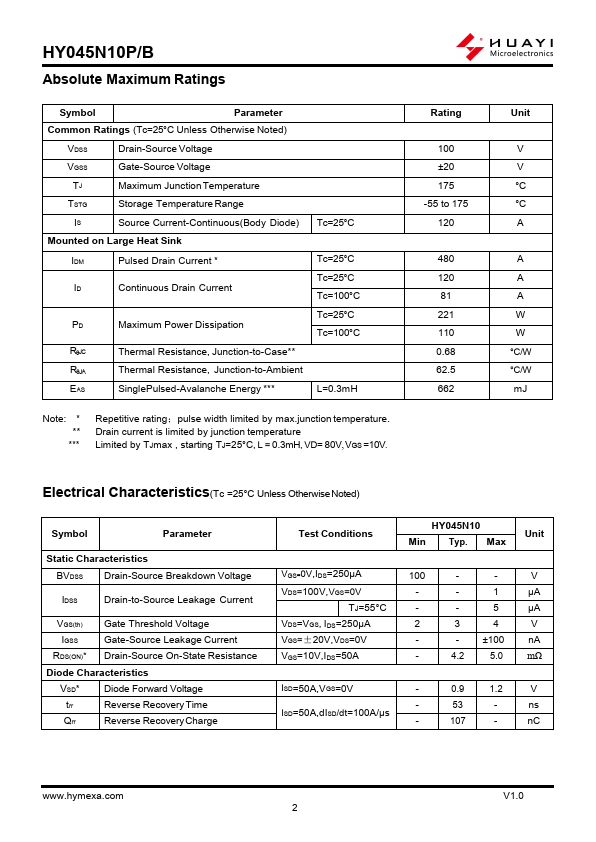

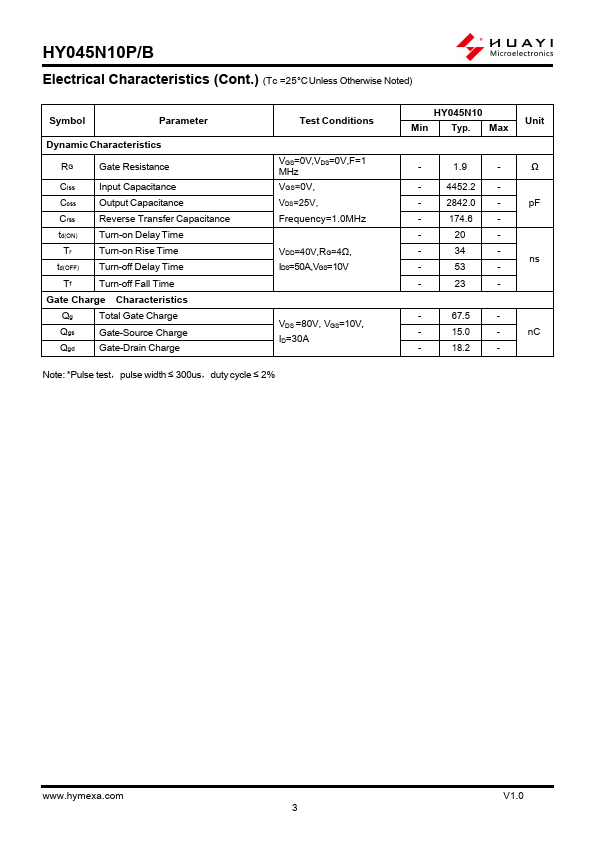

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number HY045N10P
Manufacturer HUAYI
File Size 1.54 MB
Description N-Channel Enhancement Mode MOSFET
Datasheet download datasheet HY045N10P-HUAYI.pdf

HY045N10P Product details

Description

100V/120A RDS(ON)= 4.2mΩ(typ.)@VGS = 10V 100% Avalanche Tested Reliable and Rugged Lead Free and Green Devices Available (RoHS Compliant) N-Channel Enhancement Mode MOSFET Pin Description TO-220FB-3L TO-263-2L Applications Switch application DC/DC Converter Ordering and Marking Information N-Channel MOSFET P HY045N10 YYXXXJWW G B HY045N10 YYXXXJWW G Package Code P:TO-220FB-3L Date Code YYXXX WW B:TO-263-2L Note: HUAYI lead-free products contain moldin
