HY030N06MF, HY030N06P N-Channel Enhancement Mode MOSFET

HOOYI

Description

HY030N06P/MF/PS .
GDS TO-220FB-3L G DS TO-3PS-3L GDS TO-220MF-3L Applications. Switching application. Power management for inverter systems Ordering and.

📥 Download Datasheet

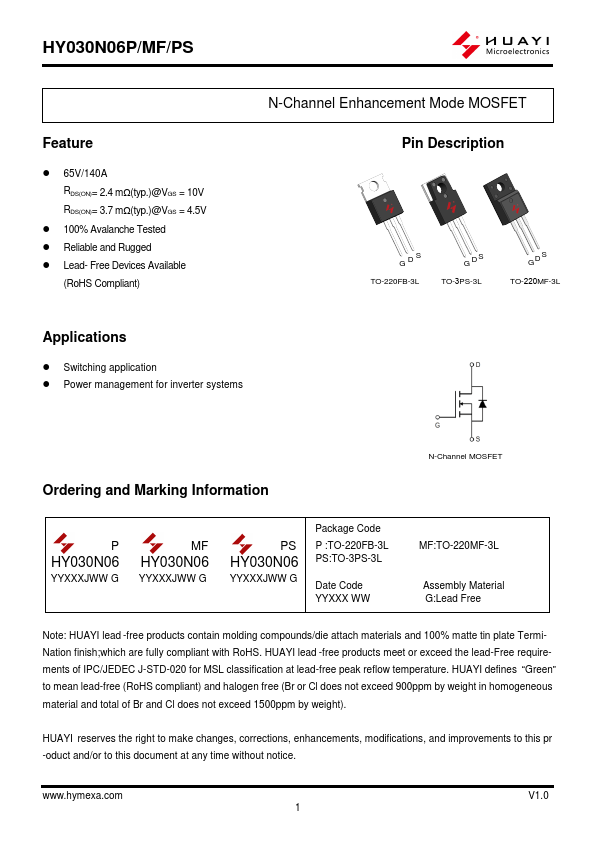

HY030N06MF Datasheet Preview — This datasheet PDF includes multiple part numbers: HY030N06MF, HY030N06P. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: HY030N06MF, HY030N06P
Manufacturer: HOOYI
File Size: 937.98 KB
Datasheet: HY030N06P-HOOYI.pdf
Description: N-Channel Enhancement Mode MOSFET
Note: This datasheet PDF includes multiple part numbers: HY030N06MF, HY030N06P.
Please refer to the document for exact specifications by model.

Applications

* Switching application
* Power management for inverter systems Ordering and Marking Information N-Channel MOSFET P HY030N06 YYXXXJWW G MF HY030N06 YYXXXJWW G PS HY030N06 YYXXXJWW G Package Code P :TO-220FB-3L PS:TO-3PS-3L Date Code YYXXX WW MF:TO-220MF-3L Assembly Material G:Lead Fre
