HY1403V - N-Channel Enhancement Mode MOSFET

HUAYI

📥 Download Datasheet

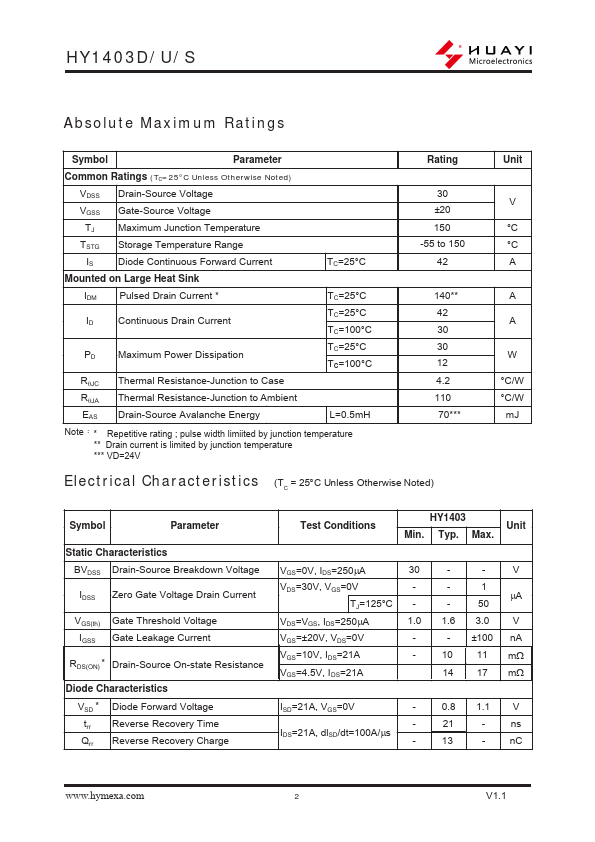

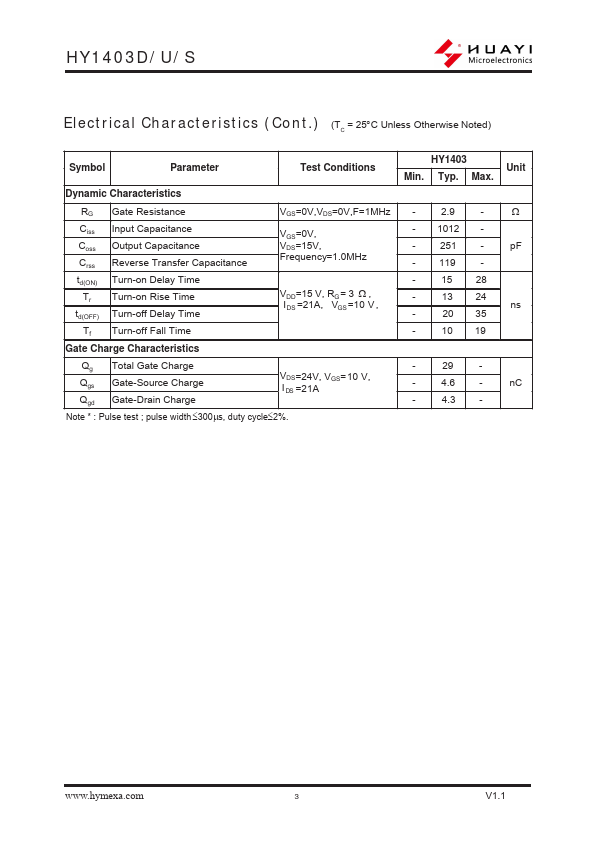

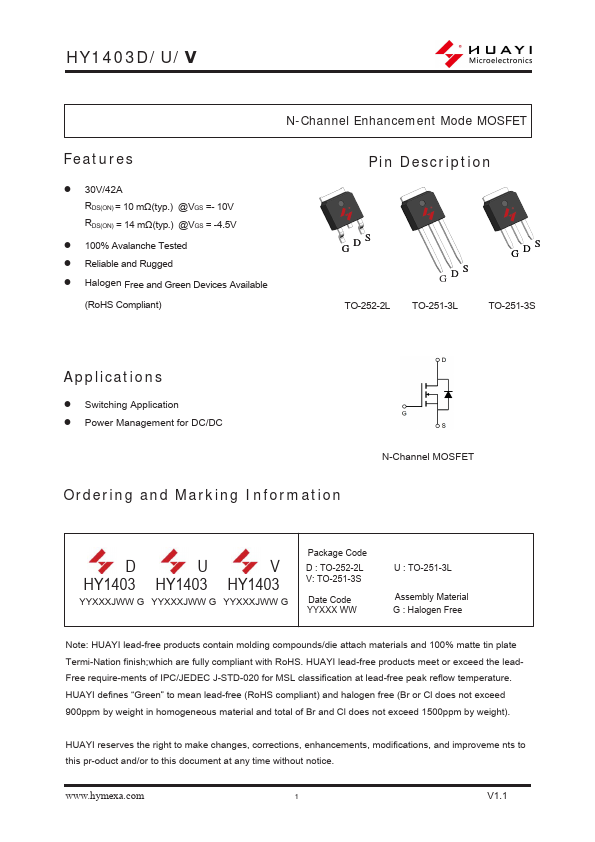

HY1403V Datasheet Preview — Preview of HY1403V PDF

Datasheet Details

Part number	HY1403V
Manufacturer	HUAYI
File Size	725.20 KB
Description	N-Channel Enhancement Mode MOSFET
Datasheet	HY1403V-HUAYI.pdf

HY1403V Product details

Description

GDS TO-252-2L GDS TO-251-3L GDS TO-251-3S Applications z Switching Application z Power Management for DC/DC Ordering and Marking Information N-Channel MOSFET D U V HY1403 HY1403 HY1403 YYXXXJWW G YYXXXJWW G YYXXXJWW G Package Code D : TO-252-2L V: TO-251-3S Date Code YYXXX WW U : TO-251-3L Assembly Material G : Halogen Free Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate Termi-Nation finish;which are fully compliant with RoHS.H

Features

z 30V/42A RDS(ON) = 10 mΩ(typ. ) @VGS =- 10V RDS(ON) = 14 mΩ(typ. ) @VGS = -4.5V z 100% Avalanche Tested z Reliable and Rugged z Halogen Free and Green Devices Available (RoHS Compliant) Pin.
