HY1420P Datasheet - HUAYI

HY1420P N-Channel Enhancement Mode MOSFET

TO-220FB-3L TO-263-2L Ordering and Marking Information P HY1420 YYXXXJWWG B HY1420 YYXXXJWWG N-Channel MOSFET Package Code P :TO-220FB-3L Date Code YYXXX WW B:TO-263-2L Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plateTermiNation finish; wh.

HY1420P-HUAYI.pdf

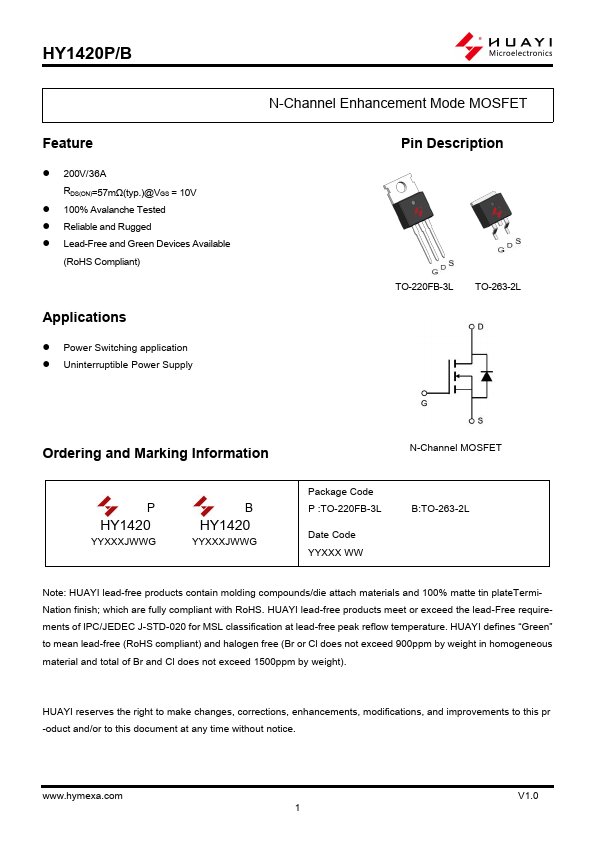

Preview of HY1420P PDF

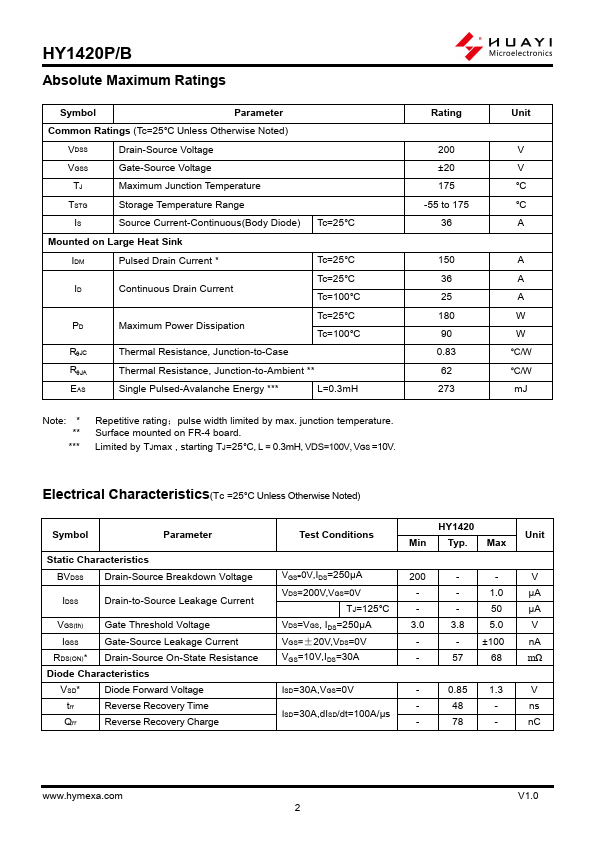

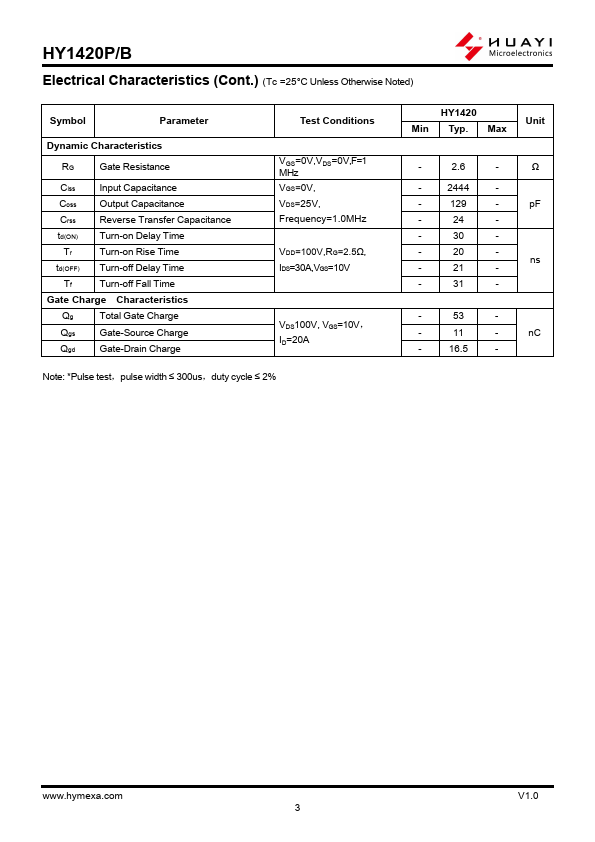

HY1420P Datasheet Preview Page 2 HY1420P Datasheet Preview Page 3

Datasheet Details

Part number:

HY1420P

Manufacturer:

HUAYI

File Size:

1.25 MB

Description:

N-channel enhancement mode mosfet.
