HVR-1X-3 High Voltage Power Diodes

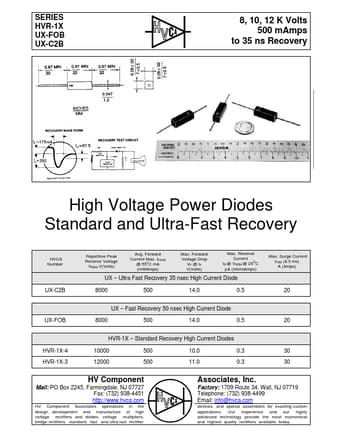

SERIES HVR-1X UX-FOB UX-C2B 8, 10, 12 K Volts 500 mAmps to 35 ns Recovery High Voltage Power Diodes Standard and Ultra-Fast Recovery HVCA Number UX-C2B Repetitive Peak Reverse Voltage VRRM V(Volts) Avg. Forward Current Max. IFAVM @ 55oC mA (milliAmps) Max. Forward Voltage Drop VF @ IF V(Volts) Max. Reverse Current IR @ VRRM @ 25OC µA (microAmps) UX Ultra Fast Recovery 35 nsec High Current Diode 8000 500 14.0 0.5 Max. Surge Current IFSM (8.3 ms) A (Amps) 20 UX-FOB UX .

HVR-1X-4-HVComponentAssociates.pdf

HVR-1X-3 Datasheet Preview — This datasheet PDF includes multiple part numbers: HVR-1X-3, HVR-1X-4. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HVR-1X-3, HVR-1X-4

Manufacturer:

HV Component Associates

File Size:

32.07 KB

Description:

High voltage power diodes.

Note:

This datasheet PDF includes multiple part numbers: HVR-1X-3, HVR-1X-4.
Please refer to the document for exact specifications by model.
