HVR-1X-96B

High-Voltage Rectifier Diode

Sanken

Download Datasheet (192.27 KB)

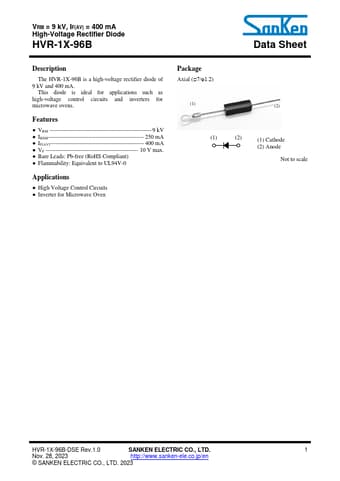

HVR-1X-96B Datasheet Preview — Preview of HVR-1X-96B Datasheet

Datasheet Details

Part number:

HVR-1X-96B

Manufacturer:

Sanken ↗

File Size:

192.27 KB

Download:

📥 HVR-1X-96B Datasheet PDF

Description:

High-voltage rectifier diode.
VRM = 9 kV, IF(AV) = 400 mA High-Voltage Rectifier Diode HVR-1X-96B Data Sheet Description The HVR.
The HVR-1X-96B is a high-voltage rectifier diode of 9 kV and 400 mA. This diode is ideal for applica.

✔ HVR-1X-96B Features

VRM
- 9 kV
IRSM
250 mA
IF(AV)
- 400 mA
VF
10 V max.
Bare Lead

✔ HVR-1X-96B Application

such as high-voltage control circuits and inverters for microwave ovens. Features
VRM
