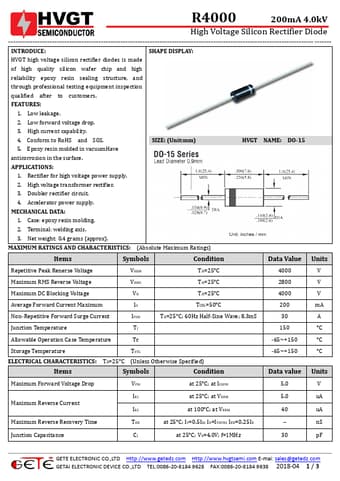

R4000 Datasheet, Diode, HVGT

R4000 Features

• Diode 1. Low leakage. 2. Low forward voltage drop. 3. High current capability. 4. Conform to RoHS and SGS. SIZE: (Unit:mm) HVGT NAME: DO-15 5. Epoxy resin molded in vacuumHave antico

PDF File Details

Part number:

R4000

Manufacturer:

HVGT

File Size:

523.25kb

Download:

📄 Datasheet

Description:

High voltage silicon rectifier diode.

R4000 Application

• Applications 1. Rectifier for high voltage power supply. 2. High voltage transformer rectifier. 3. Doubler rectifier circuit. 4. Accelerator po
