GBP302 Features
* Surge overload rating - 75 amperes peak
* Ideal for printed circuit board
* Plastic material has underwriters laboratory flammability classification 94V-0

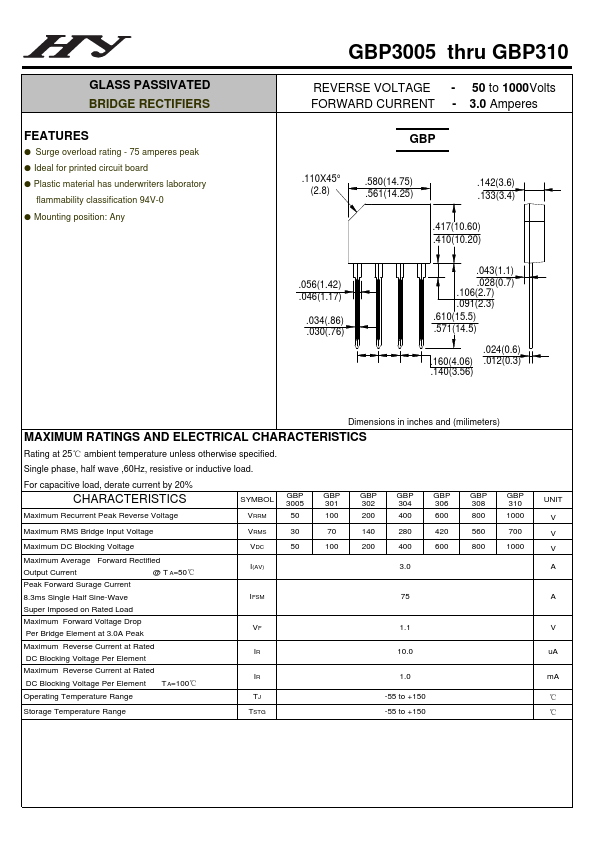

* Mounting position: Any GBP3005 thru GBP310 REVERSE VOLTAGE - 50 to 1000Volts FORWARD CURRENT - 3.0 Amperes GBP .110X45° (2.
Datasheet Details
GBP302, GBP3005
HY ELECTRONIC
46.48 KB
Glass passivated bridge rectifiers.
This datasheet PDF includes multiple part numbers: GBP302, GBP3005.
Please refer to the document for exact specifications by model.
