DF10S SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS

DF10S Description

SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS DF005S thru DF10S REVERSE VOLTAGE - 50 to 1000Volts .FORWARD CURRENT - 1.0 Ampere .

DF10S Features

* Rating to 1000V PRV
* Ideal for printed circuit board
* Low forward voltage drop,high current capability
* Reliable low cost construction utilizing molded plastic technique results in inexpensive product
* The plastic material has UL flammability classification 94V-0 MECHANICAL DATA

📥 Download Datasheet

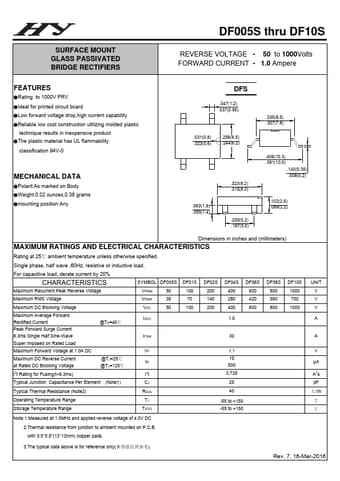

Preview of DF10S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DF10S
Manufacturer
HY
File Size
140.43 KB
Datasheet
DF10S-HY.pdf
Description
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS
