DF15005 Datasheet, Rectifiers, HY

DF15005 Features

• Rectifiers
• Glass passivated chip
• High surge forward current capability
• Reliable low cost construction utilizing molded plastic technique
• Lead tin plated

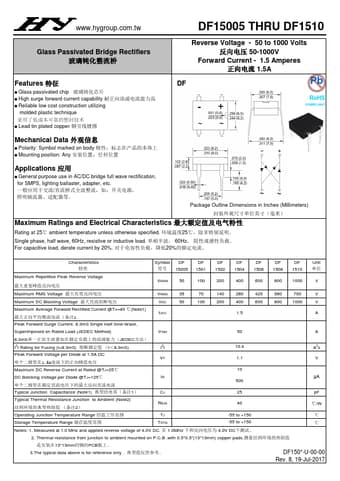

PDF File Details

Part number:

DF15005

Manufacturer:

HY

File Size:

165.44kb

Download:

📄 Datasheet

Description:

Glass passivated bridge rectifiers.

DF15005 Application

• Applications
• General purpose use in AC/DC bridge full wave rectification, for SMPS, lighting ballaster, adapter, etc. /，：， 、。 Package Out

TAGS

DF15005

HY
