SUF4007, SUF4001 SURFACE MOUNT FAST EFFICIENT RECTIFIERS

SUF4007 Description

SURFACE MOUNT FAST EFFICIENT RECTIFIERS .

SUF4007 Applications

* Glass passivated chip junction
* Low leakage current
* High forward surge capability
* Fast switching for high efficiency
* High temperature soldering guaranteed: 260°C/10 seconds at terminals
* Lead and body according with RoHS standard SUF4001 thru SUF4007 REVERSE VOLTAG

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SUF4007, SUF4001. Please refer to the document for exact specifications by model.

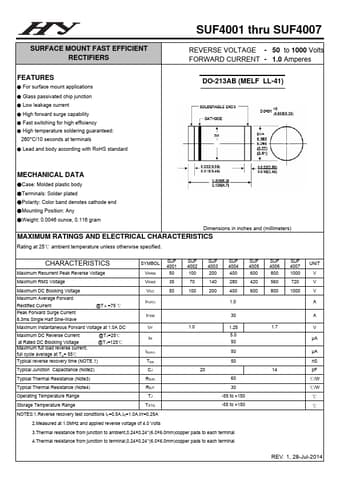

datasheet Preview Page 2

Datasheet Details

Part number
SUF4007, SUF4001
Manufacturer
HY
File Size
184.25 KB
Datasheet
SUF4001-HY.pdf
Description
SURFACE MOUNT FAST EFFICIENT RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SUF4007, SUF4001.
Please refer to the document for exact specifications by model.
