S4810

Low-voltage operation photo IC

S4810 Features

* Low-voltage operation: 2.2 to 7 V Subminiature plastic package with lens Low current consumption Open collector output S4810: “H” level output at light input S6289: “L” level output at light input Applications Cameras Tape start/end mark sensor for VTRs, cassette tape recorders, etc. Optical switch

S4810 Datasheet (305.71 KB)

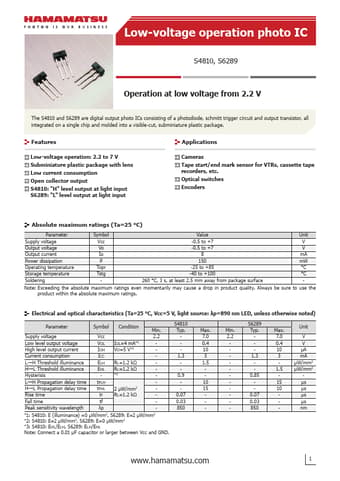

Preview of S4810 PDF

Datasheet Details

Part number:

S4810

Manufacturer:

Hamamatsu

File Size:

305.71 KB

Description:

Low-voltage operation photo ic.
Low-voltage operation photo IC S4810, S6289 Operation at low voltage from 2.2 V The S4810 and S6289 are digital output photo ICs consisting of a pho.
