S48R50 AC/DC Controller

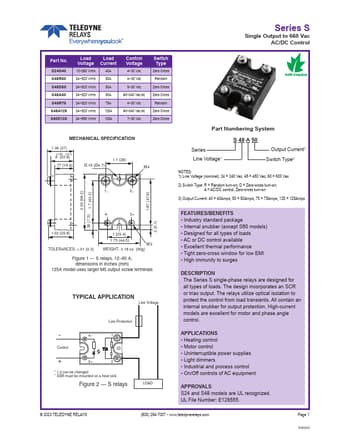

The Series S single-phase relays are designed for all types of loads. The design incorporates an SCR or triac output. The relays utilize optical isolation to protect the control from load transients. All contain an internal snubber for output protection. High-current models are excellent for motor a.

Series S Single Output to 660 Vac AC/DC Control Part No. S24D40 S48R50 S48D50 S48A50 S48R75 S48A125 S60D125 Load Voltage 12 280 Vrms Load Current 40A 24 520 Vrms 50A 24 520 Vrms 50A 24 520 Vrms 50A 24 520 Vrms 75A 24 520 Vrms 125A 24 660 Vrms 125A Control Voltage 4 30 Vdc 4 30 Vdc 5 30 Vdc 90 240 Vac/dc 4 30 Vdc 90 240 Vac/dc 7 30 Vdc Switch Type Zero Cross Random Zero C.

S48R50 Features

* BENEFITS

* Industry standard package

* Internal snubber (except S60 models)

* Designed for all types of loads

* AC or DC control available

* Excellent thermal performance

* Tight zero-cross window for low EMI

* High immunity to surges DESCRIPTI
