8Mbyte(2Mx32) EDO Mode

HMD2M32M4EAG Features

* www.DataSheet4U.com w Part Identification HMD2M32M4EAG : 1024 Cycles/32ms Ref . Gold w Access times : 50, 60ns w High-density 8MByte design w Single + 5V ±0.5V power supply w JEDEC standard pinout w EDO mode operation w TTL compatible inputs and outputs w FR4-PCB design PIN 1 2 3 4 5 6 7 8 9 10 11 1

HMD2M32M4EAG General Description

The HMD2M32M4EAG is a 2M x 32bit dynamic RAM high-density memory module. The module consists of four CMOS 1M x 16bit DRAMs in 42-pin SOJ packages mounted on a 72-pin, double-sided, FR-4-printed circuit board. A 0.1 or 0.22uF decoupling capacitor is mounted on the printed circuit board for each DRAM .

HMD2M32M4EAG Datasheet (87.67 KB)

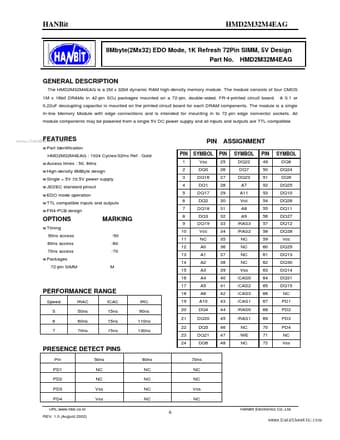

HMD2M32M4EAG Datasheet Preview — Preview of HMD2M32M4EAG PDF

Datasheet Details

Part number:

HMD2M32M4EAG

Manufacturer:

Hanbit Electronics

File Size:

87.67 KB

Description:

8mbyte(2mx32) edo mode.
