HMD16M32M8GH Datasheet - Hanbit Electronics

64Mbyte (16Mx36) FP Mode 4K Ref. 72pin-SIMM Design

HMD16M32M8GH Features

* wPart Identification www.DataSheet4U.com HMD16M32M8GH

* -4K Cycles/64ms Ref, Gold w Access times : 50, 60ns w High-density 64MByte design w Single + 5V ±0.5V power supply w JEDEC standard Pdpin & pinout w TTL compatible inputs and outputs w/CAS-before-/RAS & Hidden Refresh capability w/RAS-on

HMD16M32M8GH General Description

The HMD16M32M8GH is a 16M x 32bit dynamic RAM high-density memory module. The module consists of eight CMOS 16M x 4bit DRAMs in 32-pin SOJ or TSOP packages mounted on a 72-pin glass-epoxy substrate. A 0.1 or 0.22uF decoupling capacitor is mounted on the printed circuit board for each DRAM components.

HMD16M32M8GH Datasheet (92.66 KB)

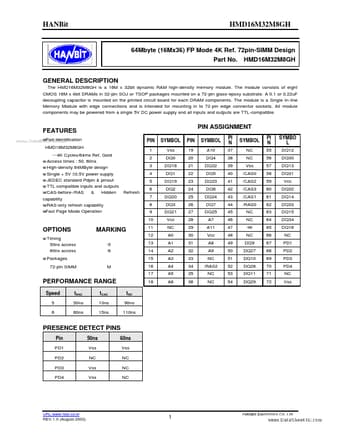

HMD16M32M8GH Datasheet Preview — Preview of HMD16M32M8GH PDF

Datasheet Details

Part number:

HMD16M32M8GH

Manufacturer:

Hanbit Electronics

File Size:

92.66 KB

Description:

64mbyte (16mx36) fp mode 4k ref. 72pin-simm design.
