HMD16M64D16EV Datasheet - Hanbit Electronics

128Mbyte(16Mx64) EDO Mode

HMD16M64D16EV Features

* PERFORMANCE RANGE SPEED -5 -6 tRAC 50ns 60ns tCAC 13ns 15ns tRC 84ns 104ns tHPC 20ns 25ns w Part Identification HMD16M64D16EV-

* 4KCycles/64ms Ref, Gold Plate Lead HMD16M64D16EVA

* - 8KCycles/64ms Ref, Gold Plate Lead w High-density 128MByte design w New JEDEC standard pro

HMD16M64D16EV General Description

The HMD16M64D16EV is a 16Mx64bits Dynamic RAM high density memory module. The HMD16M64D16EV consists of sixteen CMOS 16Mx4bits DRAMs in TSOPІІ 400mil packages mounted on a 168-pin glass-epoxy substrate. A 0.1 or 0.22uF decoupling capacitor is mounted on the printed circuit board for each DRAM. The H.

HMD16M64D16EV Datasheet (97.83 KB)

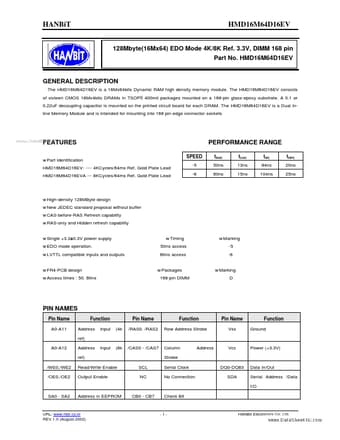

HMD16M64D16EV Datasheet Preview — Preview of HMD16M64D16EV PDF

Datasheet Details

Part number:

HMD16M64D16EV

Manufacturer:

Hanbit Electronics

File Size:

97.83 KB

Description:

128mbyte(16mx64) edo mode.
