HMD16M36M12EG Datasheet - Hanbit Electronics

64Mbyte (16Mx36) EDO

HMD16M36M12EG Features

* wPart Identification HMD16M36M12EG

* -4K Cycles/64ms Ref, Gold w Access times : 50, 60ns w High-density 64MByte design w Single + 5V ±0.5V power supply w JEDEC standard Pdpin & pinout w TTL compatible inputs and outputs w/CAS-before-/RAS & Hidden Refresh capability w/RAS-only refresh capabili

HMD16M36M12EG General Description

The HMD16M36M12EG is a 16M x 36bit dynamic RAM high-density memory module. The module consists of eight CMOS 16M x 4bit DRAMs in 32-pin SOJ or TSOP packages and four CMOS 16Mx1bit DRAMs in SOJ or TSOP packages mounted on a 72-pin glass-epoxy substrate. A 0.1 or 0.22uF decoupling capacitor is mounted.

HMD16M36M12EG Datasheet (107.15 KB)

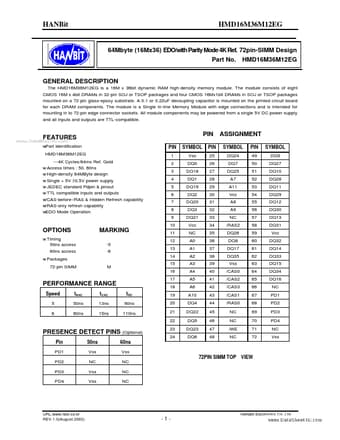

HMD16M36M12EG Datasheet Preview — Preview of HMD16M36M12EG PDF

Datasheet Details

Part number:

HMD16M36M12EG

Manufacturer:

Hanbit Electronics

File Size:

107.15 KB

Description:

64mbyte (16mx36) edo.
