HMD16M36M12G Datasheet - Hanbit Electronics

64Mbyte (16Mx36) FP

HMD16M36M12G Features

* PIN ASSIGNMENT PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 M 14 15 16 17 Speed 5 6 tRAC 50ns 60ns tCAC 13ns 15ns tRC 90ns 110ns 18 19 20 21 SYMBOL Vss DQ0 DQ18 DQ1 DQ19 DQ2 DQ20 DQ3 DQ21 Vcc NC A0 A1 A2 A3 A4 A5 A6 A10 DQ4 DQ22 DQ5 DQ23 DQ6 PIN 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46

HMD16M36M12G General Description

The HMD16M36M12G is a 16M x 36bit dynamic RAM high-density memory module. The module consists of eight CMOS 16M x 4bit DRAMs in 32-pin SOJ or TSOP packages and four CMOS 16Mx1bit DRAMs in SOJ or TSOP packages mounted on a 72-pin glass-epoxy substrate. A 0.1 or 0.22uF decoupling capacitor is mounted .

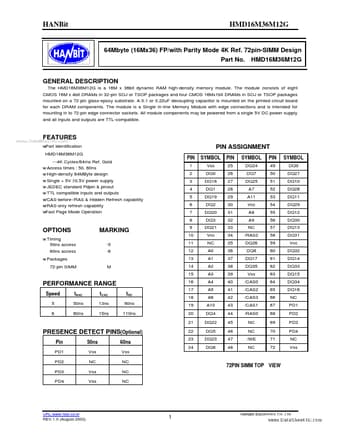

HMD16M36M12G Datasheet (94.07 KB)

HMD16M36M12G Datasheet Preview — Preview of HMD16M36M12G PDF

Datasheet Details

Part number:

HMD16M36M12G

Manufacturer:

Hanbit Electronics

File Size:

94.07 KB

Description:

64mbyte (16mx36) fp.
