HMF1M32M8S Datasheet - Hanbit Electronics

HMF1M32M8S - FLASH-ROM MODULE

The HMF1M32M8S is a high-speed flash read only memory (FROM) module containing 1,048,576 words organized in a x32bit configuration.

The module consists of eight 512K x 8 FROM mounted on a 72 -pin, both-sided, FR4-printed circuit board.In order to write control, the HMF1M32M8S provides Write Enable a

HMF1M32M8S Features

* w Access time: 70, 90 and 120ns wSwitching for write enable and disable. w High-density 4MByte design w High-reliability, low-power design w Single + 5V ± 0.5V power supply w Easy memory expansion w All inputs and outputs are TTL-compatible w FR4-PCB design w Low profile 72-pin SIMM w Minimum 100,00

HMF1M32M8S_HanbitElectronics.pdf

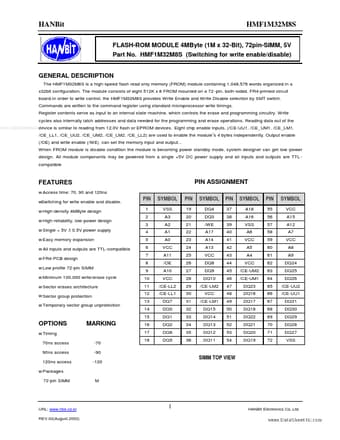

Preview of HMF1M32M8S PDF
HMF1M32M8S Datasheet Preview Page 2 HMF1M32M8S Datasheet Preview Page 3

Datasheet Details

Part number:

HMF1M32M8S

Manufacturer:

Hanbit Electronics

File Size:

460.40 KB

Description:

Flash-rom module.
