HSD101PFW2-A Datasheet, Module, HannStar

HSD101PFW2-A Features

• Module
• 10.1 (16:9 diagonal) inch configuration
• One channel LVDS interface
• 262K color by 6 bit R.G.B signal input
• RoHS Compliance
• Halogen Free

PDF File Details

Part number:

HSD101PFW2-A

Manufacturer:

HannStar

File Size:

383.98kb

Download:

📄 Datasheet

Description:

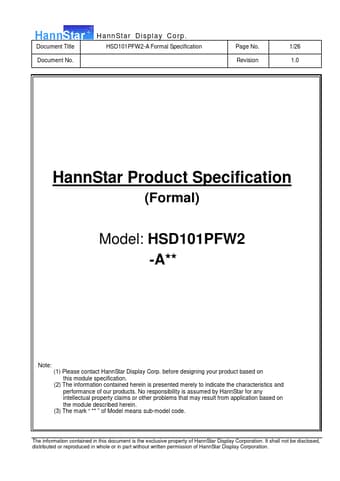

Color tft-lcd module. of change Formal Product Specification was first released. www.DataSheet.net/ The information contained in this document is the exc

HSD101PFW2-A Application

• Applications Mobile NB Digital Photo frame Display terminal for AV application 1.4 General information Item Outline Dimension Display area Number of
