HSD101PFW2-B01 Datasheet (HannStar)

HSD101PFW2-B01, Color TFT-LCD Module

of change Product Information was first released.

www.DataSheet.net/ The information contained in this document is the exclusive property of HannStar Display Corporation.

It shall not be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corpora

H a n n Sta r Di s p l a y C o rp .

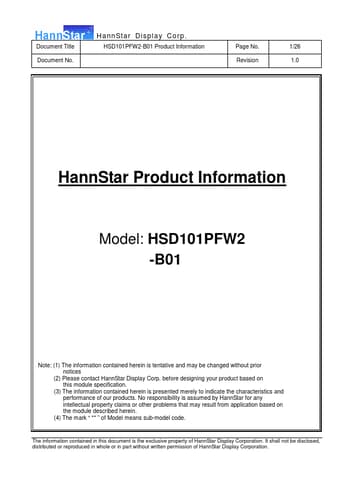

Document Title Document No.

HSD101PFW2-B01 Product Information Page No.

Revision 1/26 1.0 HannStar Product Information Model: HSD101PFW2 -B01 www.DataSheet.net/ Note: (1) The information contained herein is tentative and may be changed without prior notices (2) Please contact HannStar Display Corp.

before designing your product based on this module specification.

(3) The information contained herein is presented merely to indicate the characteristics and pe

HSD101PFW2-B01 Features

* 10.1 (16:9 diagonal) inch configuration

* One channel LVDS interface

* 262K color by 6 bit R.G.B signal input

* RoHS Compliance

* Halogen Free 1.3 Applications Mobile NB Digital Photo frame Display terminal for AV application 1.4 General information Item Outline Dimension Displ
