HSD101PFW2-A01 Datasheet - HannStar

HSD101PFW2-A01 Color TFT-LCD Module

of change 1.2 Jun, 22, 2009 A01 Formal Product Specification was first released. The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be disclosed, distributed or reproduced in whole or in part without written permission of HannStar Di.

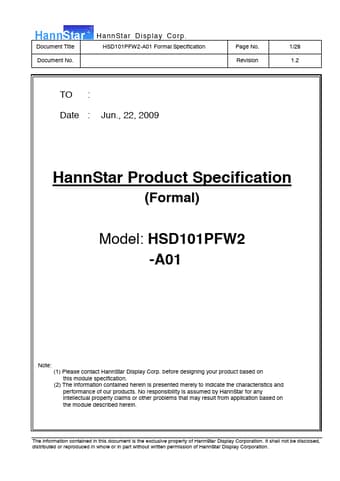

HannStar Display Corp. Document Title HSD101PFW2-A01 Formal Specification Page No. 1/28 Document No. Revision 1.2 TO : Date : Jun., 22, 2009 HannStar Product Specification (Formal) Model: HSD101PFW2 -A01 Note: (1) Please contact HannStar Display Corp. before designing your product based on this module specification. (2) The information contained herein is presented merely to indicate the characteristics and performance of our products. No responsibility is assumed by HannStar for any i.

HSD101PFW2-A01 Features

* 10.1 (16:9 diagonal) inch configuration

* One channel LVDS interface

* 262K color by 6 bit R.G.B signal input

* RoHS Compliance

* Halogen Free 1.3 Applications ! Mobile NB ! Digital Photo frame ! Display terminal for AV application 1.4 General information Item Outline Dimensio
