HS9-82C37ARH-8 - Radiation Hardened CMOS High Performance Programmable DMA Controller

Datasheet Summary

Description

The Harris HS-82C37ARH is an enhanced, radiation hardened CMOS version of the industry standard 8237A Direct Memory Access (DMA) controller, fabricated using the Harris hardened ﬁeld, self-aligned silicon gate CMOS process.

Features

for ﬂexible operation. Static CMOS circuit design insures low operating power and allows gated clock operation for an even further reduction of power. Multimode programmability allows the user to select from three basic types of DMA services, and reconﬁguration under program control is possible even with the clock to the controller stopped. Each channel has a full 64K address and word count range, and may be programmed to autoinitialize these registers following DMA termination (end of process).

Datasheet Details

Part number	HS9-82C37ARH-8
Manufacturer	Harris Corporation
File Size	253.92 KB
Description	Radiation Hardened CMOS High Performance Programmable DMA Controller
Datasheet	HS9-82C37ARH-8 Datasheet

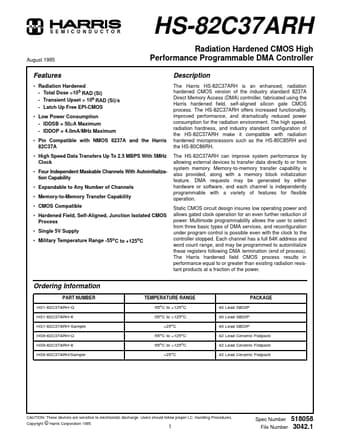

Additional preview pages of the HS9-82C37ARH-8 datasheet.

📁 Similar Datasheet

HS9-82C37ARH-8 - Radiation Hardened CMOS High Performance Programmable DMA Controller (Intersil Corporation)

HS9-82C37ARH-Q - Radiation Hardened CMOS High Performance Programmable DMA Controller (Intersil Corporation)

HS9-82C37ARH - Radiation Hardened CMOS High Performance Programmable DMA Controller (Intersil Corporation)

HS9-82C08RH - Radiation Hardened 8-Bit Bus Transceiver (Intersil Corporation)

HS9-82C12RH - Radiation Hardened 8-Bit Input/Output Port (Intersil Corporation)

HS9-82C54RH - Radiation Hardened CMOS Programmable Interval Timer (Intersil Corporation)

HS9-82C54RH-8 - Radiation Hardened CMOS Programmable Interval Timer (Intersil Corporation)

HS9-82C54RH-Q - Radiation Hardened CMOS Programmable Interval Timer (Intersil Corporation)

HS9-82C85RH - Radiation Hardened CMOS Static Clock Controller/Generator (Intersil Corporation)

HS9-82C85RH-8 - Radiation Hardened CMOS Static Clock Controller/Generator (Intersil Corporation)

Full PDF Text Transcription

Click to expand full text

S E M I C O N D U C T O R HS-82C37ARH Radiation Hardened CMOS High Performance Programmable DMA Controller Description The Harris HS-82C37ARH is an enhanced, radiation hardened CMOS version of the industry standard 8237A Direct Memory Access (DMA) controller, fabricated using the Harris hardened ﬁeld, self-aligned silicon gate CMOS process. The HS-82C37ARH offers increased functionality, improved performance, and dramatically reduced power consumption for the radiation environment. The high speed, radiation hardness, and industry standard conﬁguration of the HS-82C37ARH make it compatible with radiation hardened microprocessors such as the HS-80C85RH and the HS-80C86RH.
