HS9-82C08RH - Radiation Hardened 8-Bit Bus Transceiver

HS9-82C08RH Description

HS-82C08RH February 1996 Radiation Hardened 8-Bit Bus Transceiver Functional Diagram .
The Intersil HS-82C08RH is a radiation-hardened octal bus transceiver with three-state outputs.

HS9-82C08RH Features

* Devices QML Qualified in Accordance With MIL-PRF-38535
* Detailed Electrical and Screening Requirements are Contained in SMD# 5962-95714 and Intersil’ QM Plan
* Radiation Hardened - Total Dose 1 x 105 RAD (Si) - Latch-Up Immune EPI-CMOS > 1 x 1012 RAD (Si)/s
* Bidire

HS9-82C08RH Applications

* in radiation-hardened microcomputer systems. OE TRUTH TABLE INPUTS OUTPUT ENABLE 0 0 1 X = Don’t Care TRANSMIT /RECEIVE 0 1 X OPERATION PORT A Out In High Z PORT B In Out High Z Ordering Information PART NUMBER 5962R9571401QRC 5962R9571401QXC 5962R9571401VRC 5962R9571401VXC HS1-82C08RH/SAMPLE H

📥 Download Datasheet

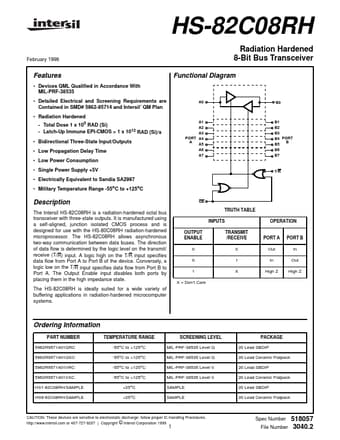

Preview of HS9-82C08RH PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HS9-82C08RH
Manufacturer
Intersil Corporation
File Size
44.33 KB
Datasheet
HS9-82C08RH_IntersilCorporation.pdf
Description
Radiation Hardened 8-Bit Bus Transceiver
