HS9-82C37ARH-Q - Radiation Hardened CMOS High Performance Programmable DMA Controller

Product Overview

Harris Corporation

Datasheet Details

Part number	HS9-82C37ARH-Q
Manufacturer	Harris Corporation
File Size	253.92 KB
Description	Radiation Hardened CMOS High Performance Programmable DMA Controller
Datasheet	HS9-82C37ARH-Q Datasheet

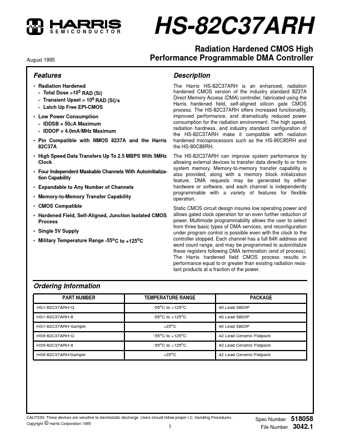

Additional preview pages of the HS9-82C37ARH-Q datasheet.

Product details

Description

The Harris HS-82C37ARH is an enhanced, radiation hardened CMOS version of the industry standard 8237A Direct Memory Access (DMA) controller, fabricated using the Harris hardened ﬁeld, self-aligned silicon gate CMOS process.

Features

for ﬂexible operation. Static CMOS circuit design insures low operating power and allows gated clock operation for an even further reduction of power. Multimode programmability allows the user to select from three basic types of DMA services, and reconﬁguration under program control is possible even with the clock to the controller stopped. Each channel has a full 64K address and word count range, and may be programmed to autoinitialize these registers following DMA termination (end of process).
