IRF512, IRF510 (IRF510 - IRF513) N-Channel Power MOSFETs

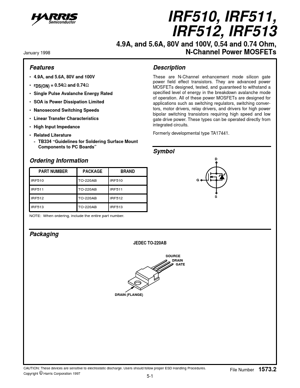

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com Semiconductor IRF510, IRF511, IRF512, IRF513 4.9A, and 5.6A, 80V and 100V, 0.54 and 0.74 Ohm, N-Channel Power MOSFETs Descriptio.
These are N-Channel enhancement mode silicon gate power field effect transistors.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRF512, IRF510. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IRF512, IRF510
Manufacturer
Harris Corporation
File Size
Direct Link
Datasheet
IRF510_HarrisCorporation.pdf
Description
(IRF510 - IRF513) N-Channel Power MOSFETs
Note
This datasheet PDF includes multiple part numbers: IRF512, IRF510.
Please refer to the document for exact specifications by model.

Features

* 4.9A, and 5.6A, 80V and 100V
* rDS(ON) = 0.54Ω and 0.74Ω
* Single Pulse Avalanche Energy Rated
* SOA is Power Dissipation Limited
* Nanosecond Switching Speeds
* Linear Transfer Characteristics
* High Input Impedance
* Related Literat

Applications

* such as switching regulators, switching convertors, motor drivers, relay drivers, and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA17441. January 1998
