IRF513 Datasheet - Inchange Semiconductor

IRF513, N-Channel MOSFET Transistor

INCHANGE Semiconductor isc N-Channel Mosfet Transistor *.

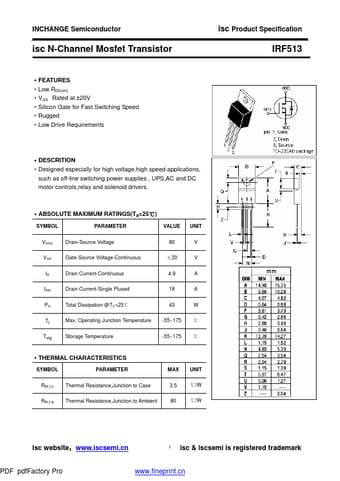

datasheet Preview Page 1 from Datasheet4u.com

IRF513-InchangeSemiconductor.pdf

IRF513 Datasheet Preview — Preview of IRF513 PDF

Datasheet Details

Part number:

IRF513

Manufacturer:

Inchange Semiconductor

File Size:

39.29 KB

Description:

N-Channel MOSFET Transistor

Features

* Low RDS(on)
* VGS Rated at ±20V
* Silicon Gate for Fast Switching Speed
* Rugged
* Low Drive Requirements isc Product Specification IRF513
* DESCRITION

Applications

* such as off-line switching power supplies , UPS,AC and DC motor controls,relay and solenoid drivers.
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS Drain-Source Voltage Gate-Source Voltage-Continuous 80 ±20 V V ID Drain Current-Continuous 4.9 A IDM Drain Curr
