HI1396Y

125 MSPS Flash A/D Converter

Harris

HI1396Y Features

* Differential Linearity Error . . . . ±0.5 LSB (Typ) or Less Integral Linearity Error . . . . . . . . ±0.5 LSB (Typ) or Less Built-In Integral Linearity Compensation Circuit Ultra High Speed

HI1396Y General Description

The HI1396Y is an 8-bit ultra high speed ﬂash analog-to-digital converter IC capable of digitizing analog signals at the maximum rate of 125MSPS. The digital I/O levels of the converter are compatible with ECL 100K/10KH/10K. The HI1396Y is available for Commercial and Industrial applications and is .

HI1396Y Datasheet (426.81 KB)

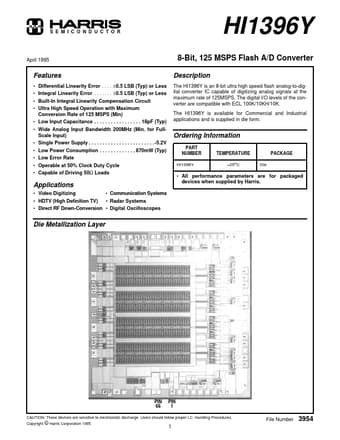

HI1396Y Datasheet Preview — Preview of HI1396Y PDF

Datasheet Details

Part number:

HI1396Y

Manufacturer:

Harris

File Size:

426.81 KB

Description:

125 msps flash a/d converter.
