HI1396 Flash A/D Converter

HI1396 Description

HI1396 August 1997 8-Bit, 125 MSPS, Flash A/D Converter .
The HI1396 is an 8-bit, ultra high speed flash analog-to-digital converter IC capable of digitizing analog signals at the maximum rate of 125 MSPS.

HI1396 Features

* Differential Linearity Error ±0.5 LSB (Typ) or Less Integral Linearity Error ±0.5 LSB (Typ) or Less Built-In Integral Linearity Compensation Circuit Ultra High Speed Operation with

HI1396 Applications

* Video Digitizing
* Communication Systems
* HDTV (High Definition TV)
* Radar Systems
* Direct RF Down-Conversion
* Digital Oscilloscopes www. DataSheet4U. com Pinouts HI1396 (SBDIP) TOP VIEW NC NC AVEE NC LINV DVEE DGND1 DGND2 (LSB) D0 D1 D2 1 2 3 4 5

📥 Download Datasheet

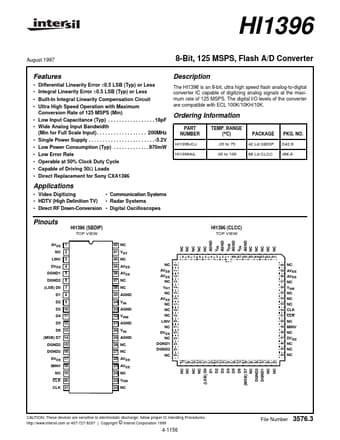

Preview of HI1396 PDF
