HI1386 Flash A/D Converter

HI1386 Description

HI1386 August 1997 8-Bit, 75 MSPS, Flash A/D Converter .
The HI1386 is an 8-bit, high-speed flash analog-to-digital converter IC capable of digitizing analog signals at a maximum rate of 75 MSPS.

HI1386 Features

* Differential Linearity Error ±0.5 LSB or Less
* Integral Linearity Error ±0.5 LSB or Less
* Built-In Integral Linearity Compensation Circuit
* High-Speed Operation with Maximum Conversion Rate (Min)
* . . . . 75 MSPS

HI1386 Applications

* Video Digitizing
* RGB Graphics Processing www. DataSheet4U. com
* HDTV (High Definition TV)
* Radar Systems
* Communication Systems
* Direct RF Down-Conversion
* Digital Oscilloscopes Pinouts HI1386 (PDIP) TOP VIEW DGND2 DGND1 HI1386 (CLCC)

📥 Download Datasheet

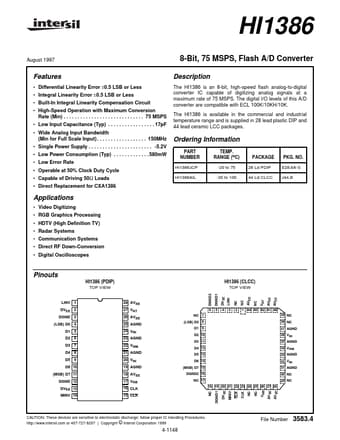

Preview of HI1386 PDF
