MD82C55B Datasheet - Harris

CMOS Programmable Peripheral Interface

MD82C55B Features

* Pin Compatible with NMOS 8255A

* 24 Programmable I/O Pins

* Fully TTL Compatible

* High Speed, No “Wait State” Operation with 5MHz and 8MHz 80C86 and 80C88

* Direct Bit Set/Reset Capability

* Enhanced Control Word Read Capability

* L7 Process

MD82C55B General Description

The Harris 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which .

MD82C55B Datasheet (234.44 KB)

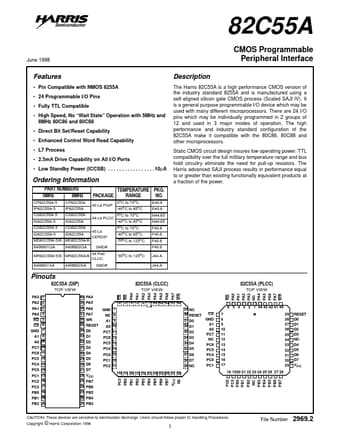

Preview of MD82C55B PDF

Datasheet Details

Part number:

MD82C55B

Manufacturer:

Harris

File Size:

234.44 KB

Description:

Cmos programmable peripheral interface.
