MD82C55A-5 Datasheet - Intersil

CMOS Programmable Peripheral Interface

MD82C55A-5 Features

* Pin Compatible with NMOS 8255A

* 24 Programmable I/O Pins

* Fully TTL Compatible

* High Speed, No “Wait State” Operation with 5MHz and 8MHz 80C86 and 80C88

* Direct Bit Set/Reset Capability

* Enhanced Control Word Read Capability

* L7 Process

MD82C55A-5 General Description

The Intersil 82C55A is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins whic.

MD82C55A-5 Datasheet (233.91 KB)

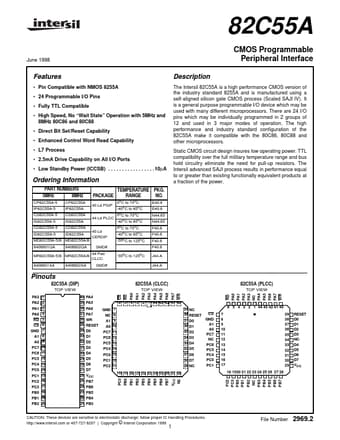

Preview of MD82C55A-5 PDF

Datasheet Details

Part number:

MD82C55A-5

Manufacturer:

Intersil

File Size:

233.91 KB

Description:

Cmos programmable peripheral interface.
