MD82C52B, MD82C52, CMOS Serial Controller Interface

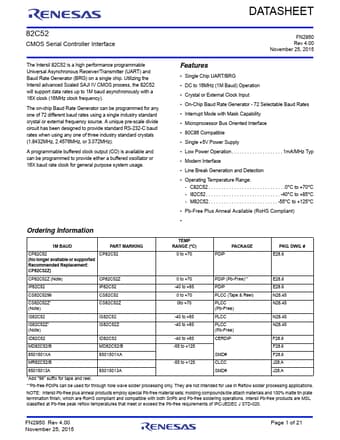

DATASHEET 82C52 CMOS Serial Controller Interface FN2950 Rev 4.00 November 25, 2015 The Intersil 82C52 is a high performance programmable Universal .
PIN SYMBOL NO.

datasheet Preview Page 1 from Datasheet4u.com

MD82C52-Renesas.pdf

MD82C52B Datasheet Preview — This datasheet PDF includes multiple part numbers: MD82C52B, MD82C52. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MD82C52B, MD82C52

Manufacturer:

Renesas ↗

File Size:

1.06 MB

Description:

CMOS Serial Controller Interface

Note:

This datasheet PDF includes multiple part numbers: MD82C52B, MD82C52.
Please refer to the document for exact specifications by model.

Features

* Single Chip UART/BRG
* DC to 16MHz (1M Baud) Operation
* Crystal or External Clock Input
* On-Chip Baud Rate Generator - 72 Selectable Baud Rates
* Interrupt Mode with Mask Capability
* Microprocessor Bus Oriented Interface
* 80C86 Compatible

Applications

* NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified
