RFH25P10, RFH25P08 P-Channel Power MOSFETs

RFH25P10 Description

Semiconductor RFH25P08, RFH25P10, RFK25P08, RFK25P10 -25A, -100V and -80V, 0.150 Ohm, P-Channel Power MOSFETs .
These are P-Channel enhancement mode silicon gate power field effect transistors designed for applications such as switching regulators, switching conv.

RFH25P10 Features

* -25A, -100V and -80V
* rDS(ON) = 0.150Ω
* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” [ /Title (RFH25 P08, RFH25P 10, RFK25P 08, RFK25P 10) /Subject (-25A, 100V, 80V, 0.150 Ohm, PChannel Power MOSFETs) /Author () /Keywords (2

RFH25P10 Applications

* such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type TA49230. BRAND RFH25P08

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RFH25P10, RFH25P08. Please refer to the document for exact specifications by model.

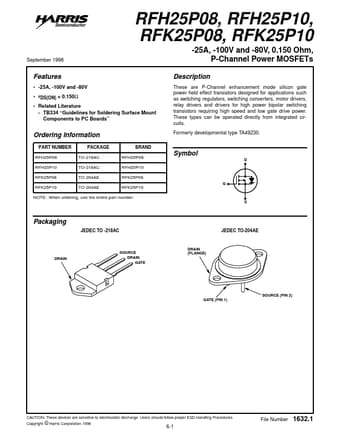

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RFH25P10, RFH25P08
Manufacturer
Harris
File Size
32.68 KB
Datasheet
RFH25P08-Harris.pdf
Description
P-Channel Power MOSFETs
Note
This datasheet PDF includes multiple part numbers: RFH25P10, RFH25P08.
Please refer to the document for exact specifications by model.
