RFH12N35 N-Channel Power MOSFET

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

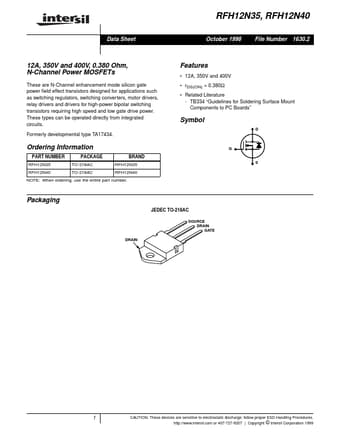

RFH12N35, RFH12N40 Data Sheet October 1998 File Number 1630.2 12A, 350V and 400V, 0.380 Ohm, N-Channel Power MOSFETs These are N-Channel enhancement mode silicon gate power ﬁeld effect transistors designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high-power bipolar switching transistors requiring high speed and low gate drive power. These types can be operated directly from integrated circuits. Formerly developmental type .

RFH12N35 Features

* 12A, 350V and 400V

* rDS(ON) = 0.380Ω

* Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Symbol D Ordering Information PART NUMBER RFH12N35 RFH12N40 PACKAGE TO-218AC TO-218AC BRAND RFH12N35 RFH12N40 G S NOTE: When ordering, us
