RFHA1025 - 280W GaN WIDEBAND PULSED POWER AMPLIFIER

RFMD

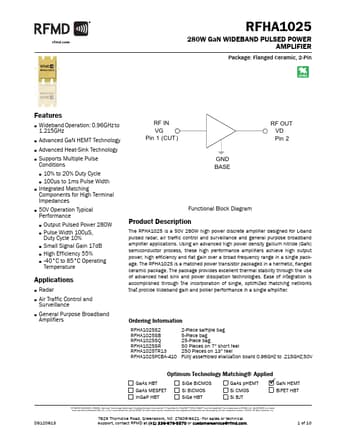

RFHA1025 Datasheet Preview — Preview of RFHA1025 PDF

Datasheet Details

Part number	RFHA1025
Manufacturer	RFMD
File Size	939.76 KB
Description	280W GaN WIDEBAND PULSED POWER AMPLIFIER
Datasheet	RFHA1025_RFMD.pdf

RFHA1025 Product details

Description

The RFHA1025 is a 50V 280W high power discrete amplifier designed for L-band pulsed radar, air traffic control and surveillance and general purpose broadband amplifier applications.

Features

Wideband Operation: 0.96GHz to 1.215GHz Advanced GaN HEMT Technology Advanced Heat-Sink Technology Supports Multiple Pulse Conditions 10% to 20% Duty Cycle 100s to 1ms Pulse Width Integrated Matching Components for High Terminal Impedances.
RF IN VG Pin 1 (CUT ) RF OUT T VD Pin 2 G GND B BASE.
50V Operation Typical Performance.
Functional Block Diagram.
Output Pulsed Power 280W Pulse Width 100S, Duty Cycle 10%.
