RFHA1000

15W GaN WIDE-BAND POWER AMPLIFIER

RF Micro Devices

RFHA1000 Features

* VGS Pin 1 Advanced GaN HEMT Technology Output Power of 15W Advanced Heat-Sink Technology 50MHz to 1000MHz Instantaneous Bandwidth Input Internally Matched to 50  28V Operation Typical Performance Output Power 41.5dBm Gain 17dB

* Power Added Efficiency 60% -40°C to 85°C

RFHA1000 General Description

The RFHA1000 is a wideband Power Amplifier designed for CW and pulsed applications such as wireless infrastructure, RADAR, two way radios and general purpose amplification. Using an advanced high power density Gallium Nitride (GaN) semiconductor process, these high-performance amplifiers achieve hig.

RFHA1000 Datasheet (976.08 KB)

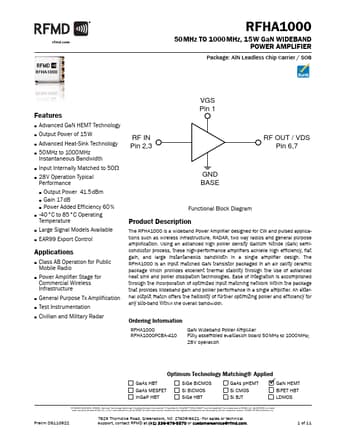

RFHA1000 Datasheet Preview — Preview of RFHA1000 PDF

Datasheet Details

Part number:

RFHA1000

Manufacturer:

RF Micro Devices

File Size:

976.08 KB

Description:

15w gan wide-band power amplifier.
www.DataSheet.co.kr RFHA1000 50MHz to 1000MHz, 15 W GaN Wideband Power Amplifier RFHA1000 50MHz TO 1000MHz, 15W GaN WIDEBAND POWER AMPLIFIER Package.
