110BYGH165-001-03 - HYBRID STEPPING MOTOR

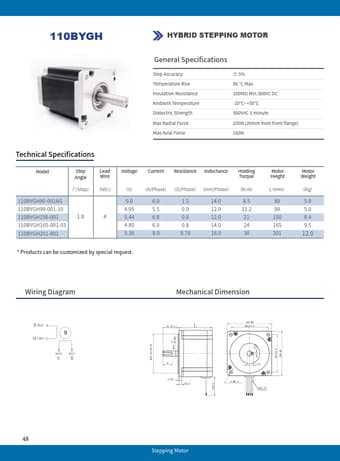

110BYGH HYBRID STEPPING MOTOR General Specifications Step Accuracy Temperature Rise Insulation Resistance Ambient Temperature Dielectric Strength Max Radial Force Max Axial Force ± 5% 80 ℃ Maxl 100MΩ Min.500VC DC -20℃~+50℃ 500VAC 1 minute 330N (20mm from front flange) 100N Technical Specifications Model Step Angle Lead Wire Voltage Current Resistance Inductance Holding Torque (°/Step) (NO.) (V) (A/Phase) (Ω/Phase) (mH/Phase) (N.m) 110BYGH80-001AG 9.0 6.0 1.5 14.0 8.5 110BYGH9
